PTLT002 系列 快速插头插座

      PTLT 002 Series Power Connectors

Features & Benefits / 技术参数

-Rated current / 额定电流:     630A

-Norminal voltage / 额定电压: 1000V

-JAB 360°twsited strip technology / JAB 360°接触技术

-Bayonet quick lock / 卡栓式快速锁定结构

-Single pole / 单极

-Plastic housing / 塑料外壳

-IP65 waterproof in mated condition / IP65防水等级

-Multi color marking / 颜色区分

-IP2X touchproof / IP2X 防触摸保护

-Mate cycles / 使用寿命: >20,000

-Certification/产品认证：CE/IEC

Bayonet locking system / 卡栓式快速锁定结构

Plugging procedure / 锁定 :

The markings on the plug and socket have to be lined up. ｉｎｓｅｒｔ plug in with socket to the stop then ｉｎｓｅｒｔ further with axial pressure and turn simultaneously to the right (seen from the plug in the direction of insertion) until the bayonet lock engages.

对准插头和插座上的颜色标识，将插头插入插座，然后用力顶住插头转动90度，插头会自动回弹卡

住

Unplugging procedure / 解锁:

Push plug in further and turn simultaneously to left (seen from the plug in the direction of insertion) until the markings are lined up. Pull plug out of socket.

用力顶住插头，回转90度，插头和插座上的颜色标识对齐，就可以把插头拔出

 360°twisted strip multi conact technology

360°表带式接触技术

Feathure and benefits of JAB 360°multi contact technology

360°表带式接触技术优点

1)    Very high contact reliability / 稳定的接触

2)    Low contact resistance / 低接触电阻

3)    High current ｌｏａｄ / 过载电流能力高

4)    Low temprature rise / 低温升

5)    Excellent performance under vibration / 抗震动

6)    Low insertion and withdrawal force / 低插拔力

7)    High number of mating cycle / 高插拔次数

8)    Long service life / 长使用寿命

002-630A 系列

1.0        Benefits & feature / 技术参数

-      Rated current / 额定电流 :      630A

-      Norminal voltage / 额定电压: 1000V

-      Cable cross section area / 电缆横截面积： 50-70 mm²，95-120 mm²，150mm²、185mm²、240mm²

2.1   Straight panel receptacle / 面板插座

P/N订货号：PTLT-002-630-M16-1RX（  X : 颜色）

2.2  Straight plug / 直插头

P/N订货号：PTLT-002-630-XXX-1PX（XXX: 电缆横截面积 (mm2)   /   X : 颜色）

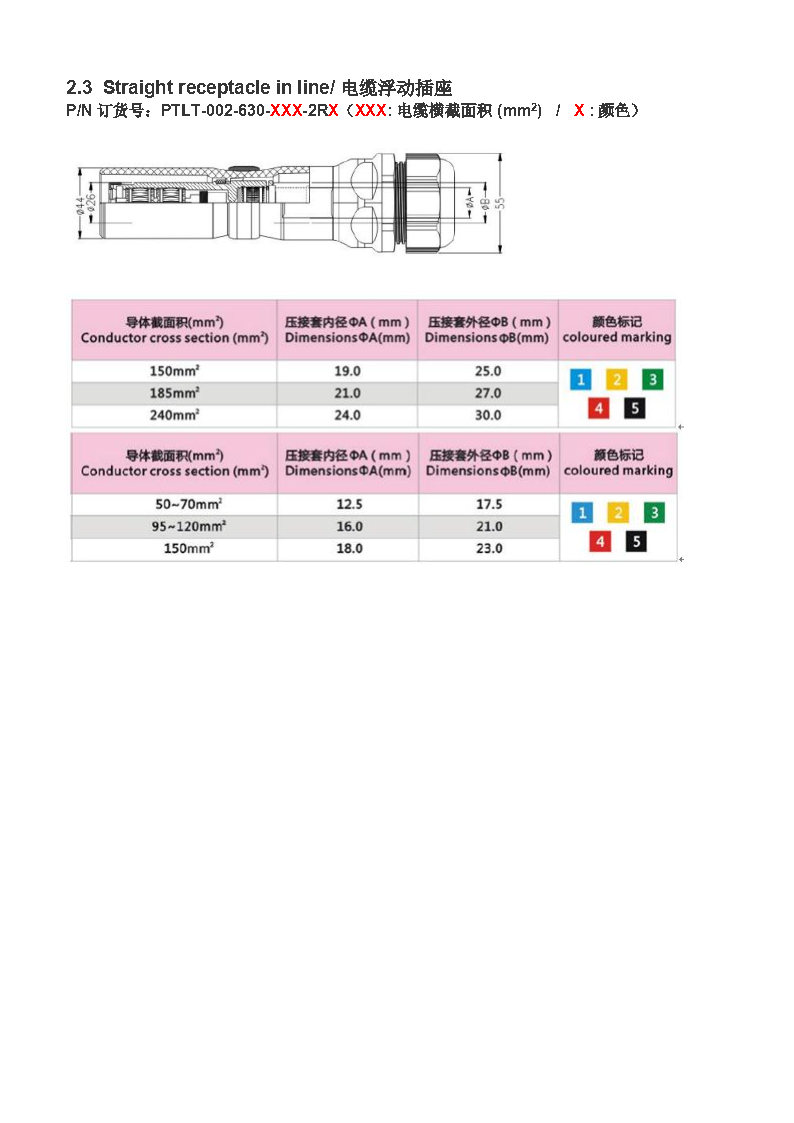

2.3  Straight receptacle in line/ 电缆浮动插座

P/N订货号：PTLT-002-630-XXX-2RX（XXX: 电缆横截面积 (mm2)   /   X : 颜色）

Application / 应用：电源，测试，发电车，应急电源车，配电柜，电力分配等
